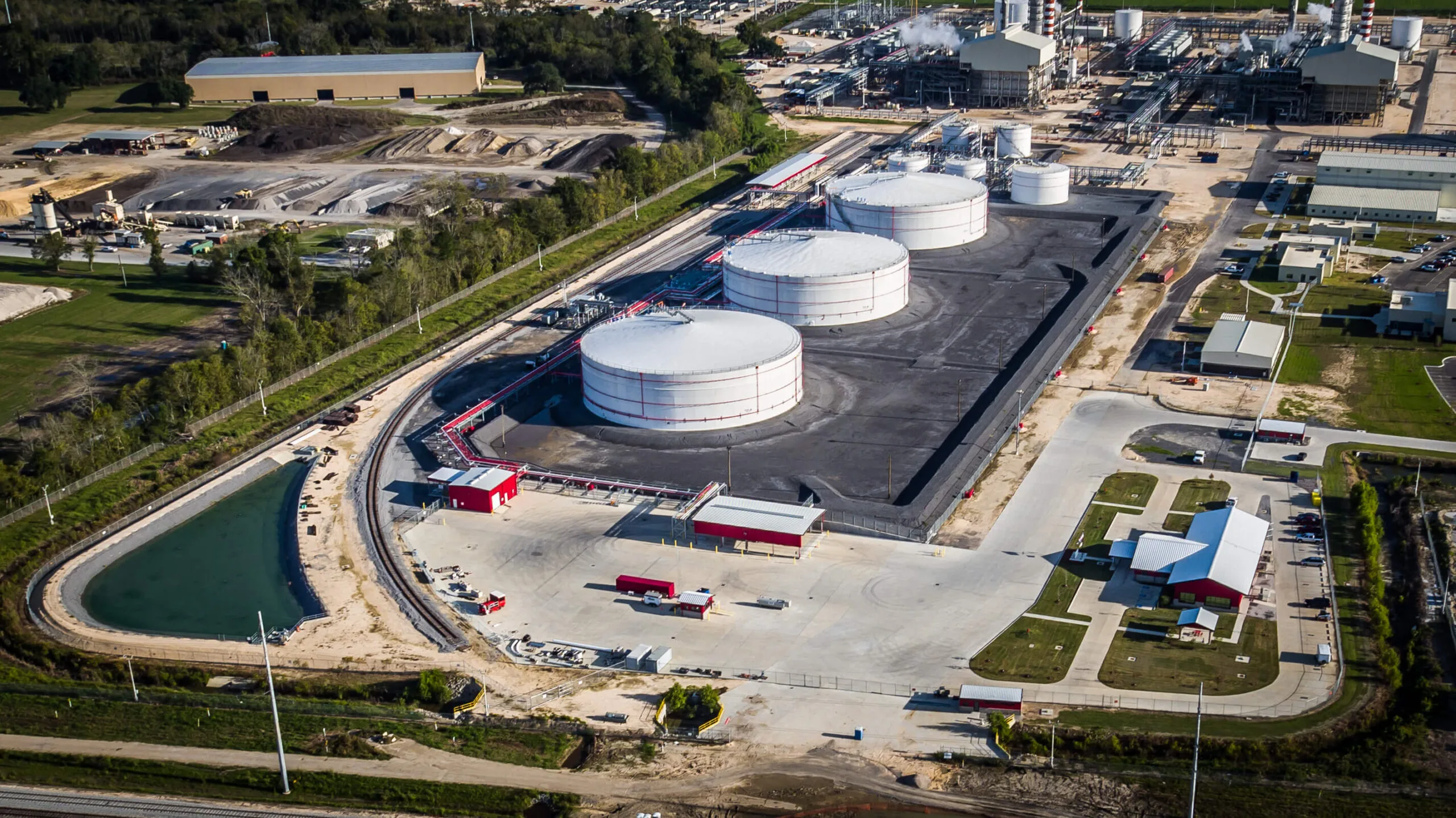

Matrix PDM Engineering provided engineering, design and equipment supply services for three new carbon steel tanks to store and handle methanol at Kinder Morgan’s Methanex terminal.

Overview
220000
barrel carbon steel tanks
100 %
commitment to safety
35 +
years of industry experience

Scope of Work

  • Design of three 220,000 barrel carbon steel tanks
  • Design for the addition of an eight-spot rail loading/ offloading and staging area and a two-bay truck loading/offloading rack
  • Piping distribution, including specifications, calculations, and drawings
  • Field investigations and determined locations of equipment, distances and routings for conduit and tray, existing PLC system and interface points to the control network
  • Specification and design for a new MCC building and gear

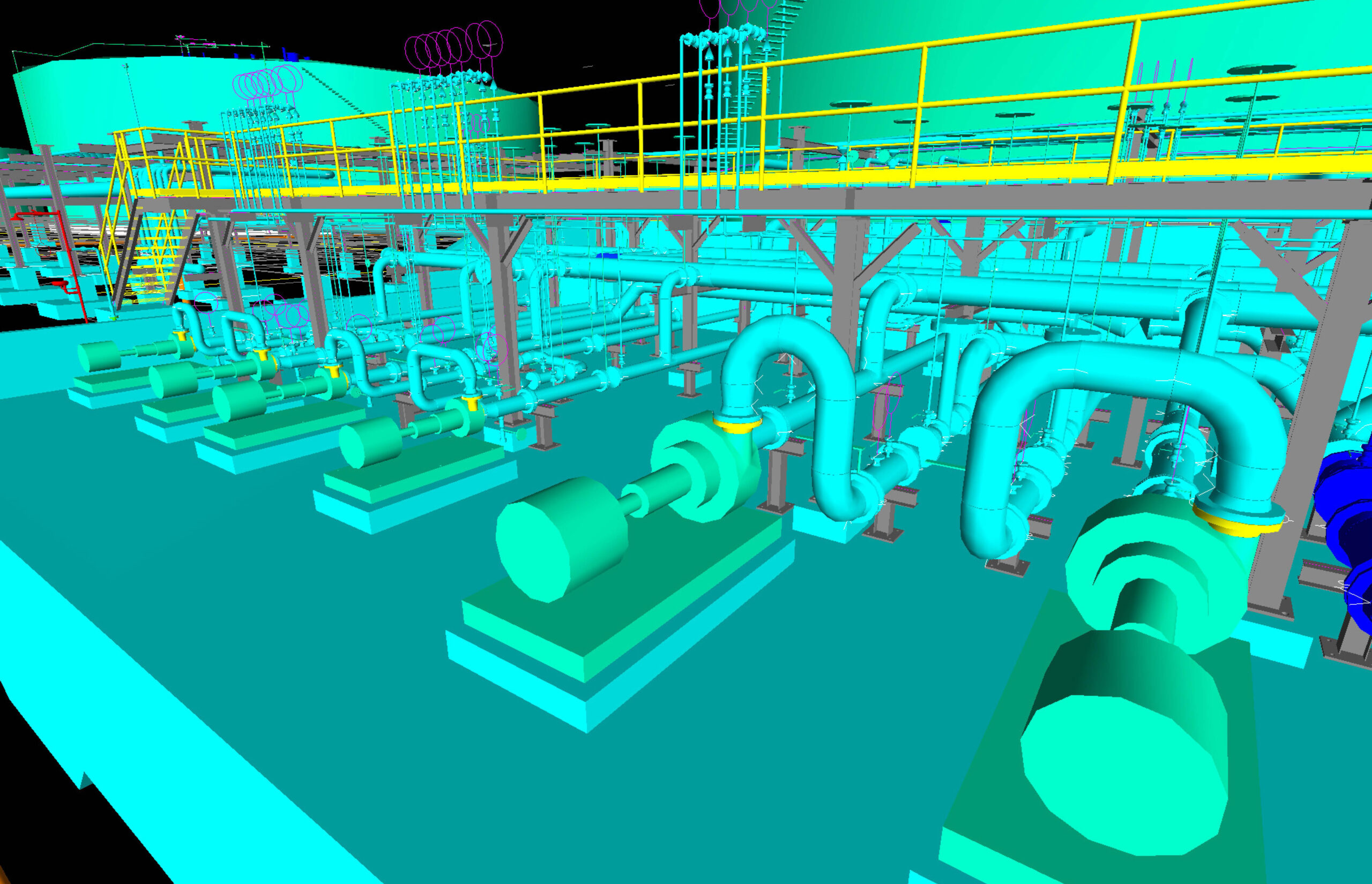

  • Utilized 3D design for all discipline design effort
  • Hardware specification and supply for all control systems equipment
  • Programming (SCADA system), pre-commissioning and startup for the new installation
  • Firewater/foam system design and specification
  • Designed the operations and administration building and guard shack
  • Provided upgrades to an existing barge dock, ship loadout dock, and other infrastructure
