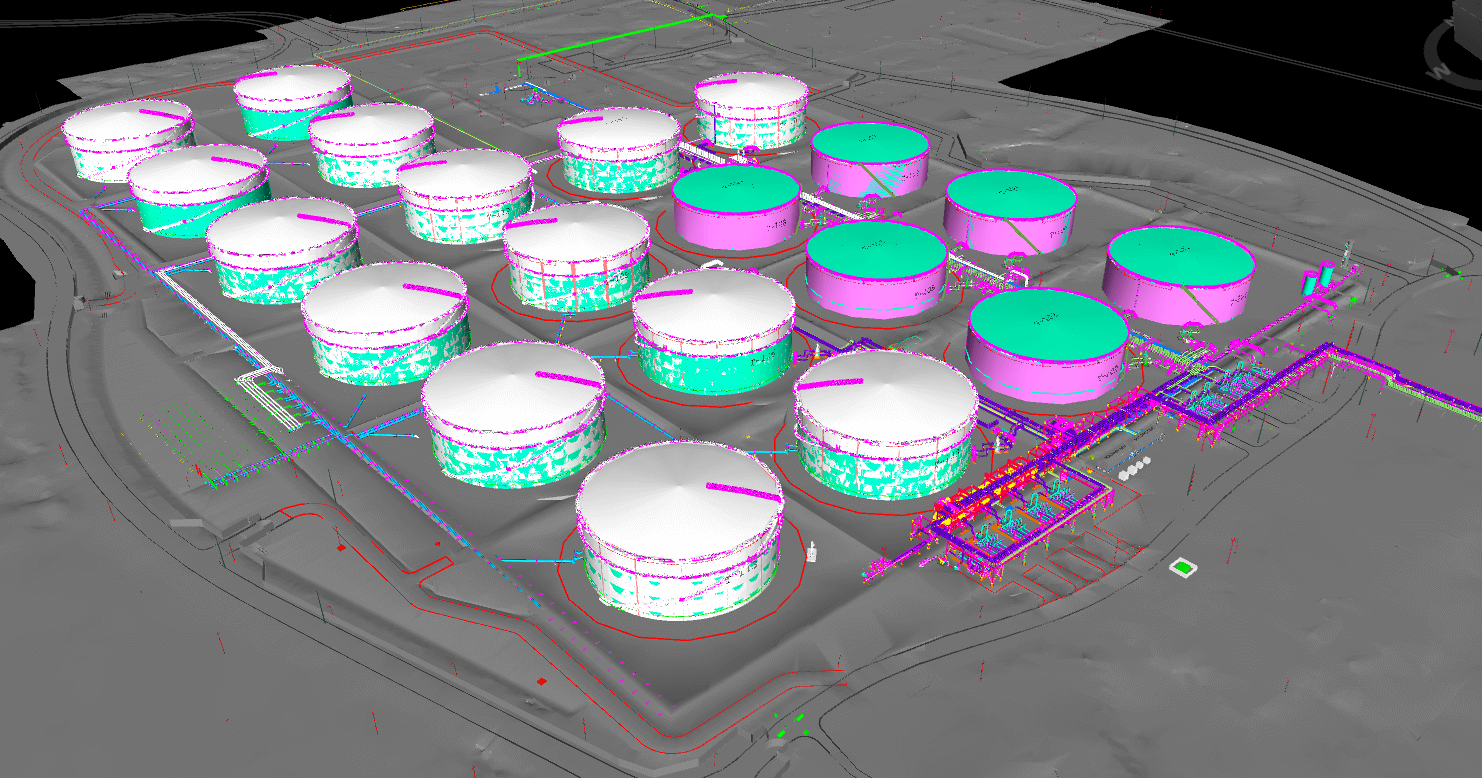

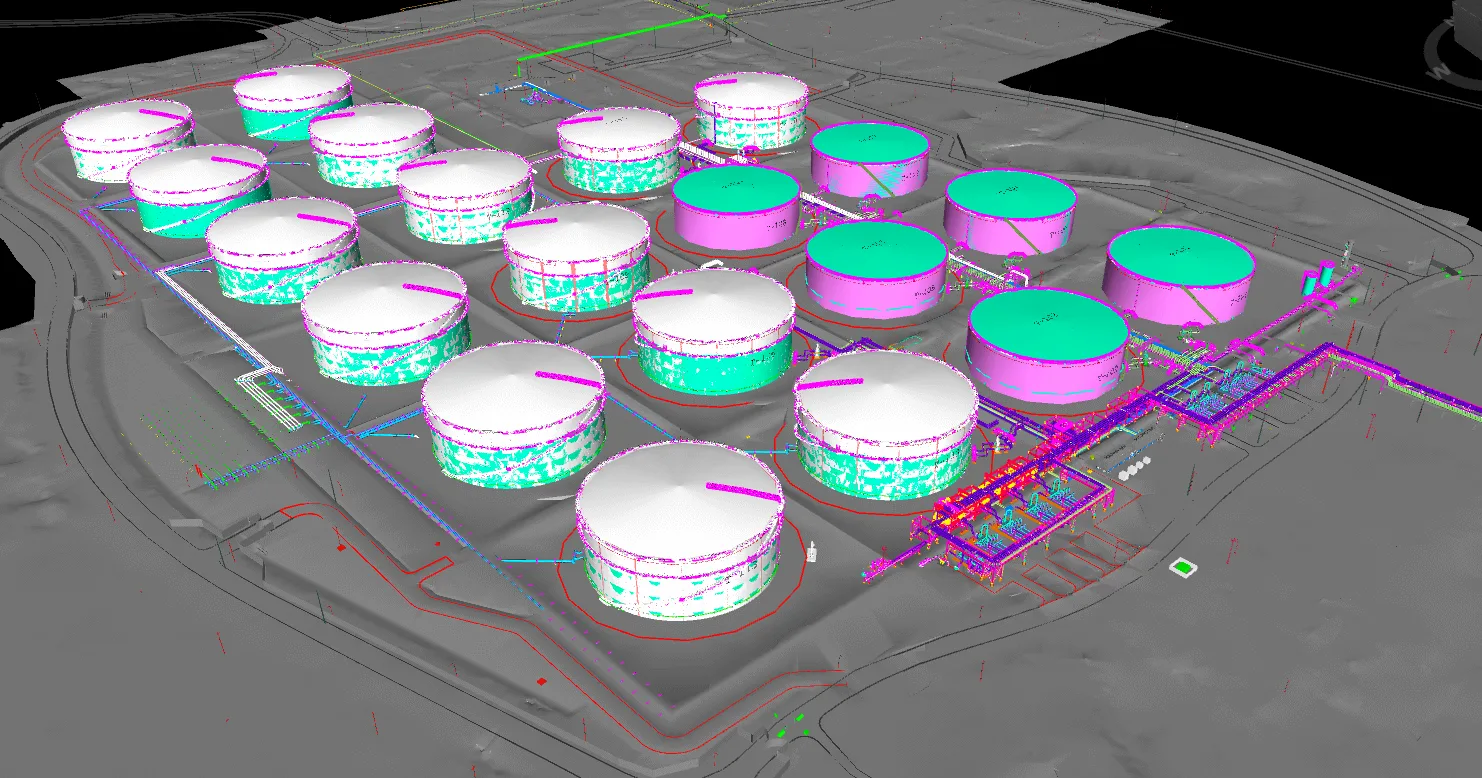

Matrix provided budgetary FEED services for the expansion of an existing crude oil terminal on the Texas Gulf Coast. Matrix provided detailed design services included process, piping, electrical, instrumentation, controls, and civil and structural engineering for this new greenfield facility.

Overview
14
API 650 crude oil storage tanks
7 MM
bbls of crude oil storage capacity
80000 bph
flow rate of new ship loading arms

Scope of Work

  • Infrastructure and facilities for the addition of over 6.7 million bbls of crude oil storage to the facility
  • 14 API 650 crude oil storage tanks with side entry mixers for blending
  • New pipeline tie ins with receivers, custody transfer metering systems, provers, and surge protection
  • Installation of new ship loading arms to support increased 80,000 bph flow rate
  • Dock and pier enhancements to support new, larger ship
  • Updated dock safety unit and vapor control units to support new flow rates
  • All piping and valves between tanks and manifold and pipeline interconnect
  • Upgraded firewater distribution system to support new tanks and facility equipment
  • Integrated facility control system with an integrated inventory management system
  • Electrical infrastructure including substation transformers, MCCs, distribution panels, and grounding protection systems
