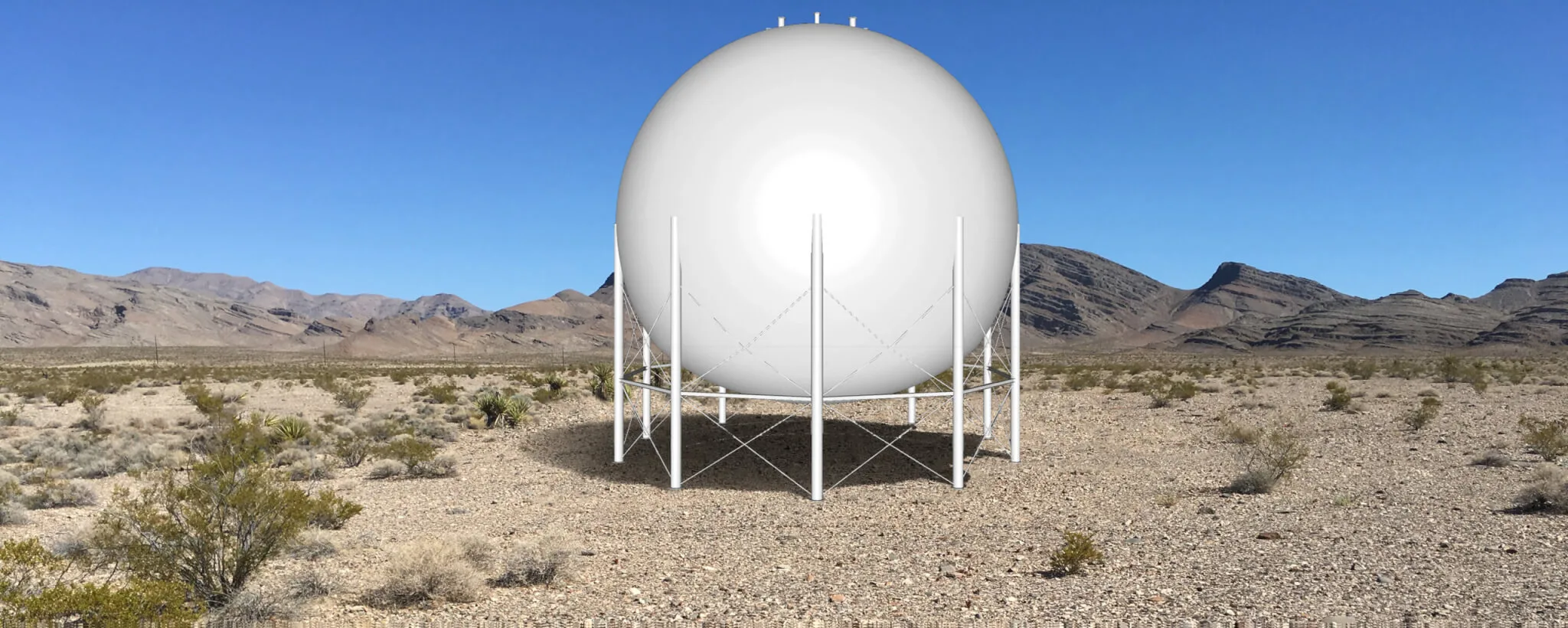

Matrix Service was awarded the engineering, procurement, and construction (EPC) of a cryogenic double wall liquid hydrogen storage sphere for a new greenfield hydrogen production facility for a confidential client in the Winter of 2019. The project was mechanically complete in the fall of 2021.

Overview
423
degrees F minimum
476 K
gallon net volume
60
CS outer sphere

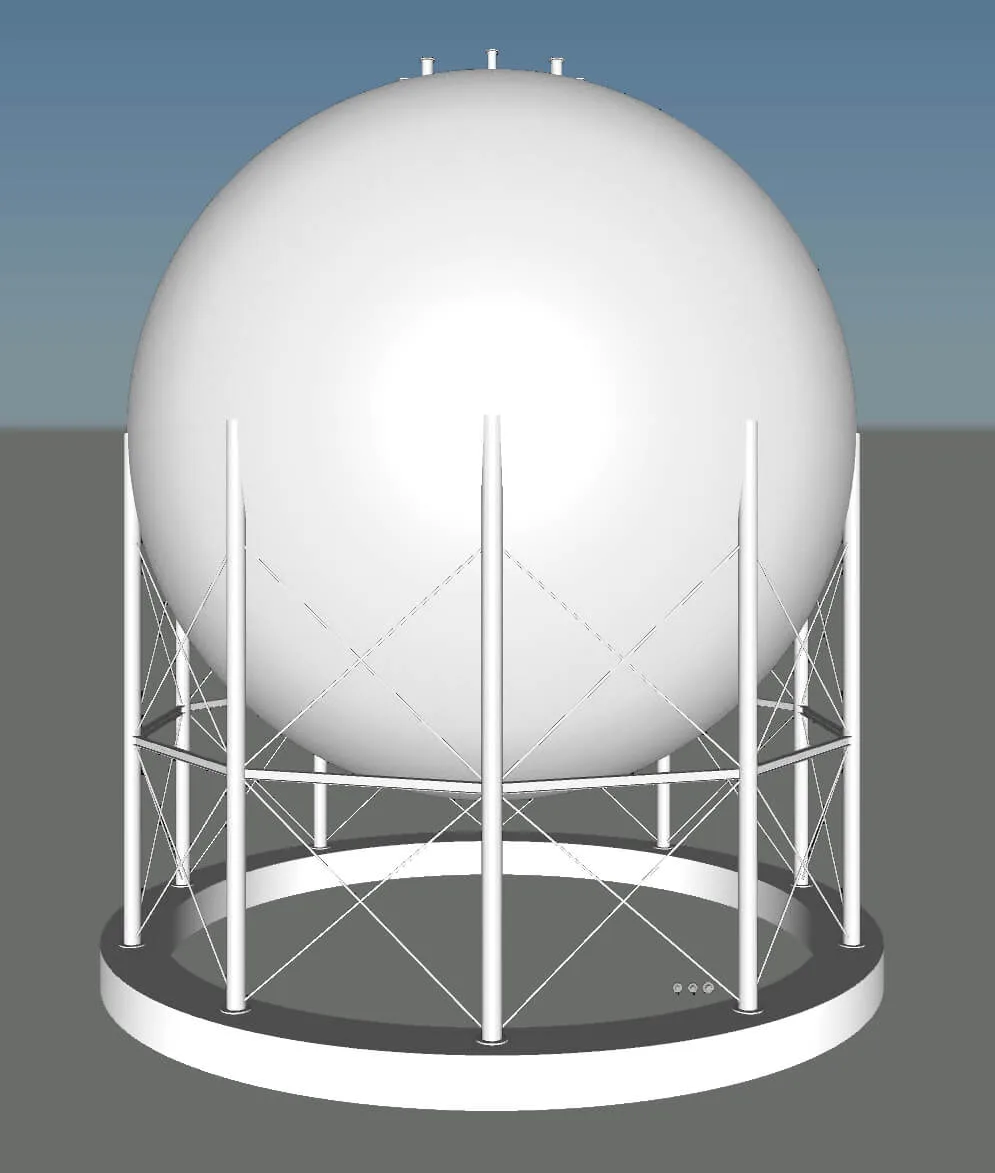

Scope of Work

  • 475,510 gallon net volume
  • 60’ 6” diameter CS outer sphere
  • 51’ diameter SS inner sphere
  • Evacuated Perlite insulation
  • Design minimum temperature for inner sphere is -423° F
  • Pressure Build Up Coil (PBUC) units w/ interconnecting piping
  • Ringwall foundation
  • Sphere coatings
  • Fireproofing on legs
