SwingMaster Swing Joints for Floating Suction Lines
Engineered for Jet A1. Built for extreme duty. Available up to 36″.
When uptime, fuel quality, and schedule certainty matter, SwingMaster central‑type swing joints deliver. Built with rugged cast/ductile iron and plain Ni‑Resist (copper‑free) bearings, then epoxy‑coated inside and out for Jet A1, SwingMaster™ is specified by terminal operators and aviation fuel farms that can’t afford surprises.
Standard sizes from 4″ to 36″, with leading sizes in stock—so your project doesn’t wait on a casting.

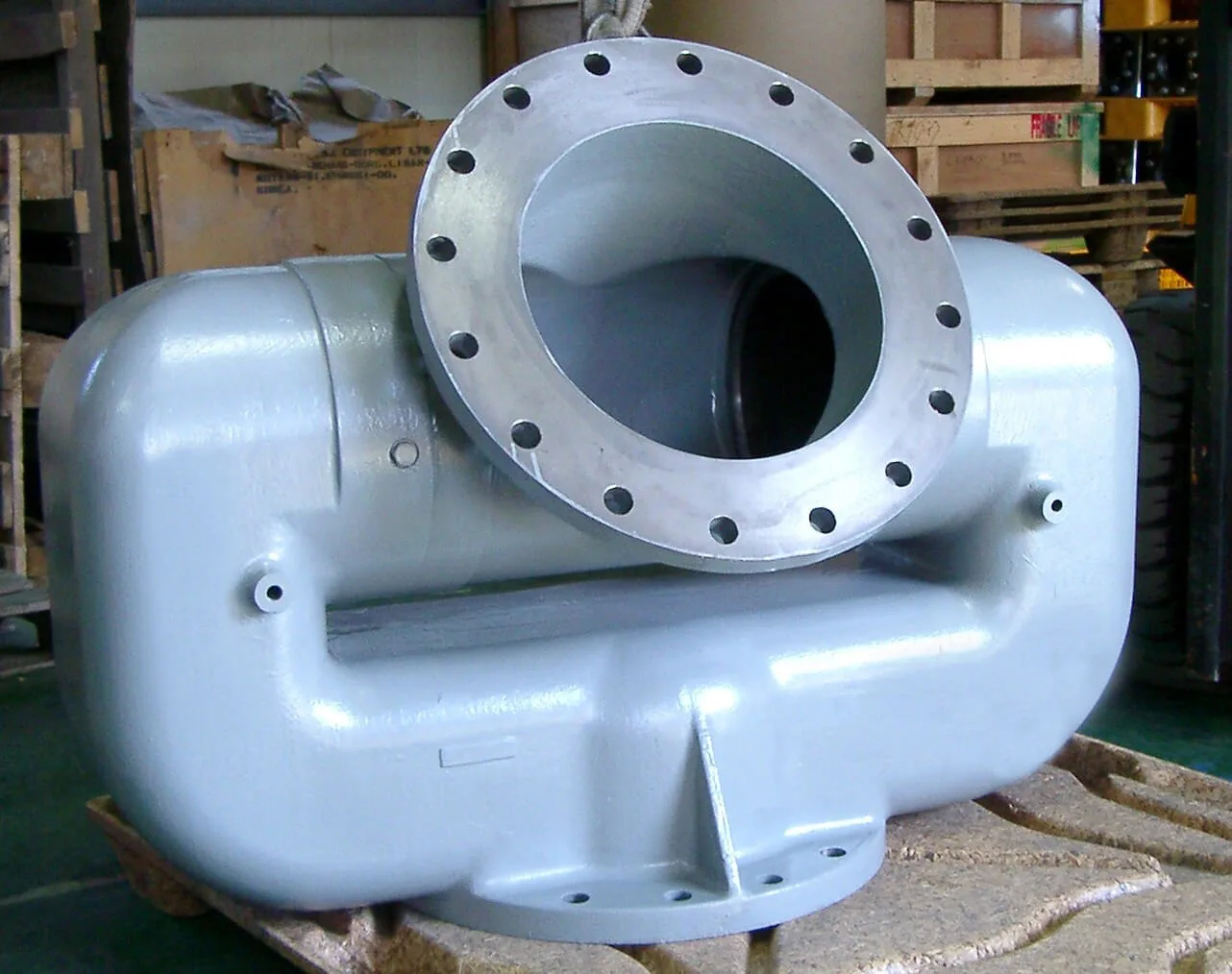

SwingMaster™ central type swing joints are constructed in rugged cast iron/ductile iron with plain Ni-Resist bearings (copper free), as well as SS304 and SS316. SwingMaster™ swing joints are internally and externally epoxy painted for Jet A1 service. 100% cast stainless steel joints are available to special order.
SwingMaster™ joints are available in 4″through to 36″ flange diameters. Many sizes are on the shelf and readily available, including a 14” diameter joint. Up to 24″ size, all flanges are ANSI 150# Flat Face. Above 24″, flange standards vary. We currently have casting patterns for 26″, 30″ & 36″ SwingMaster™ joints.
Need an estimate? Submit a data sheet here or explore sizes in our brochure.
Why swingmaster?
Internal + external epoxy coating engineered for aviation service helps resist corrosion and speeds commissioning.
4″–36″ diameters standard; patterns on hand for 26″, 30″, 36″; 14″ and many more sizes are on the shelf.
Aviation Fuel Storage
JUHI and airport fuel farms demanding Jet A1 quality and predictable maintenance cycles. Aviation and Miliary AST Management and lead prevention.
Liquid Terminals + Midstream Tanks
Clean draw‑off for refined products and chemicals.
Refining, Petrochemical, + Power
Distillate and slops management with durable submerged rotation.
technical snapshot
- Body: cast iron / ductile iron / stainless steel
- Bearings: plain Ni‑Resist (copper‑free)
- Coating: internal & external epoxy for Jet A1
- Sizes: 4″–36″; patterns for 26″/30″/36″; many sizes stocked (incl. 14″)
- Flanges: ANSI 150# FF to 24″ (above 24″ varies)
- Materials options: SS304, SS316, 100% cast stainless (special order)
See SwingMaster in action in this demo.
Full specifications and dimensions available in the SwingMaster data sheet.
GET THE DATA SHEET or see the BROCHURE.
Leading Sizes In Stock
Serviceable In-Field
Broad Standard Size Range
To avoid costly custom fabrication, SwingMaster Swing Joints are available in a range of standard sizes to satisfy your project needs. Contact us to request an estimate and get your swing joint faster with the exact specifications you require.
Swingmaster joints: Request an estimate
